Screenseed media player
Quick Start Guide

Table of Contents

• What's in the Box

• Hardware

• Digital Signage Installation and Setup

• Managing Your Account

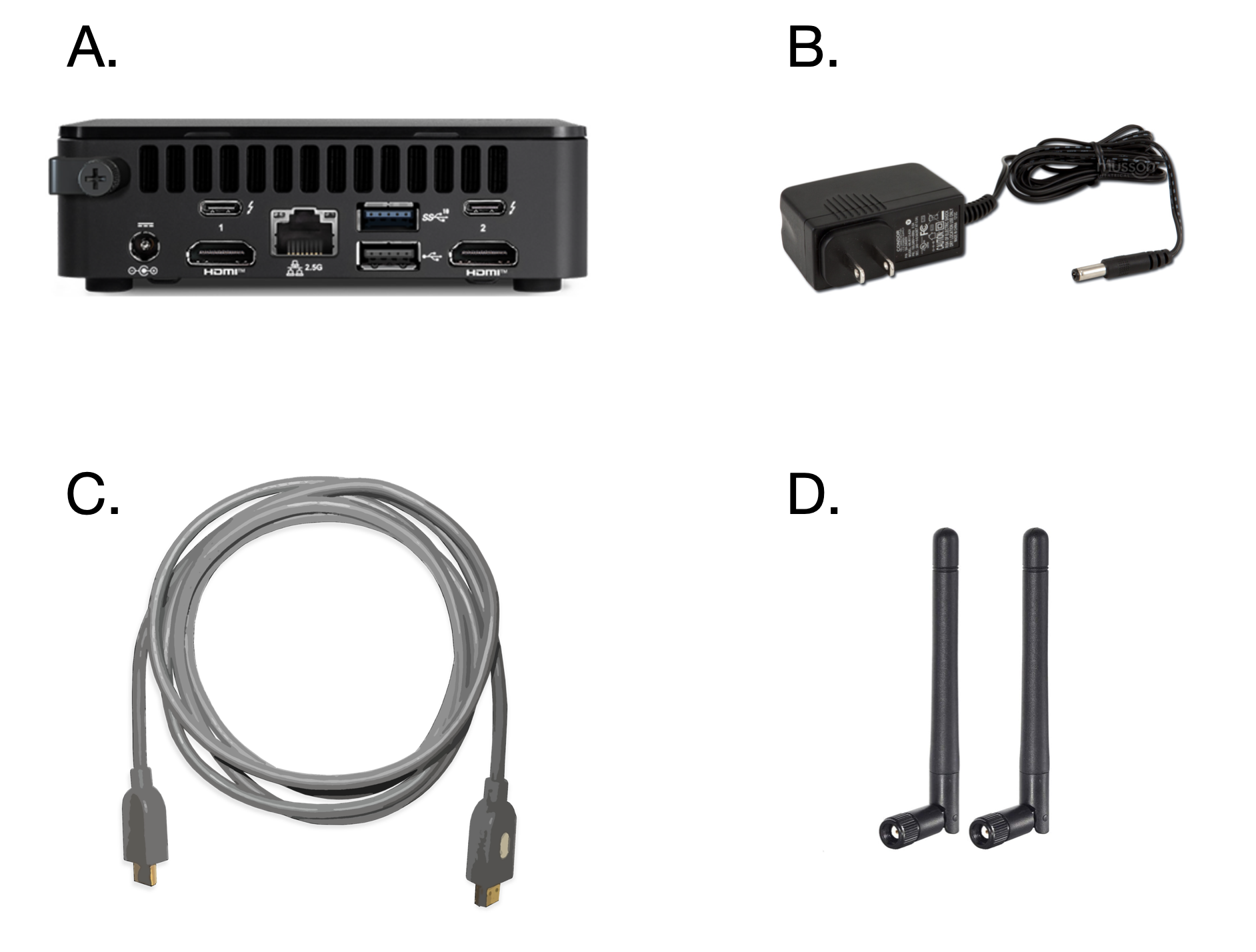

What's in the Box

A. Screenseed media player

    - includes VESA mount

B. Power Adapter

C. HDMI Cable

D. Optional: 2 Wireless Antennas

Media player models

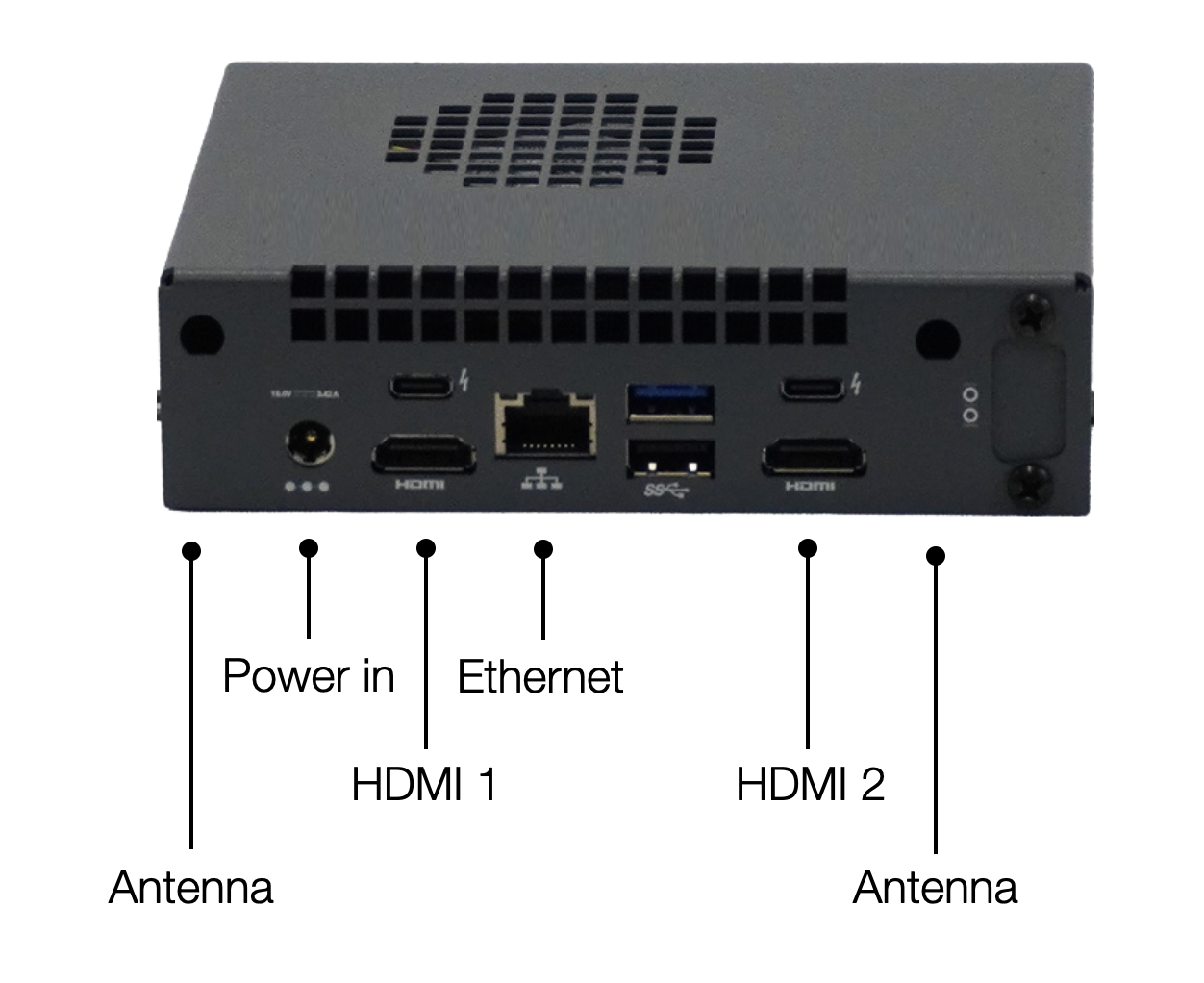

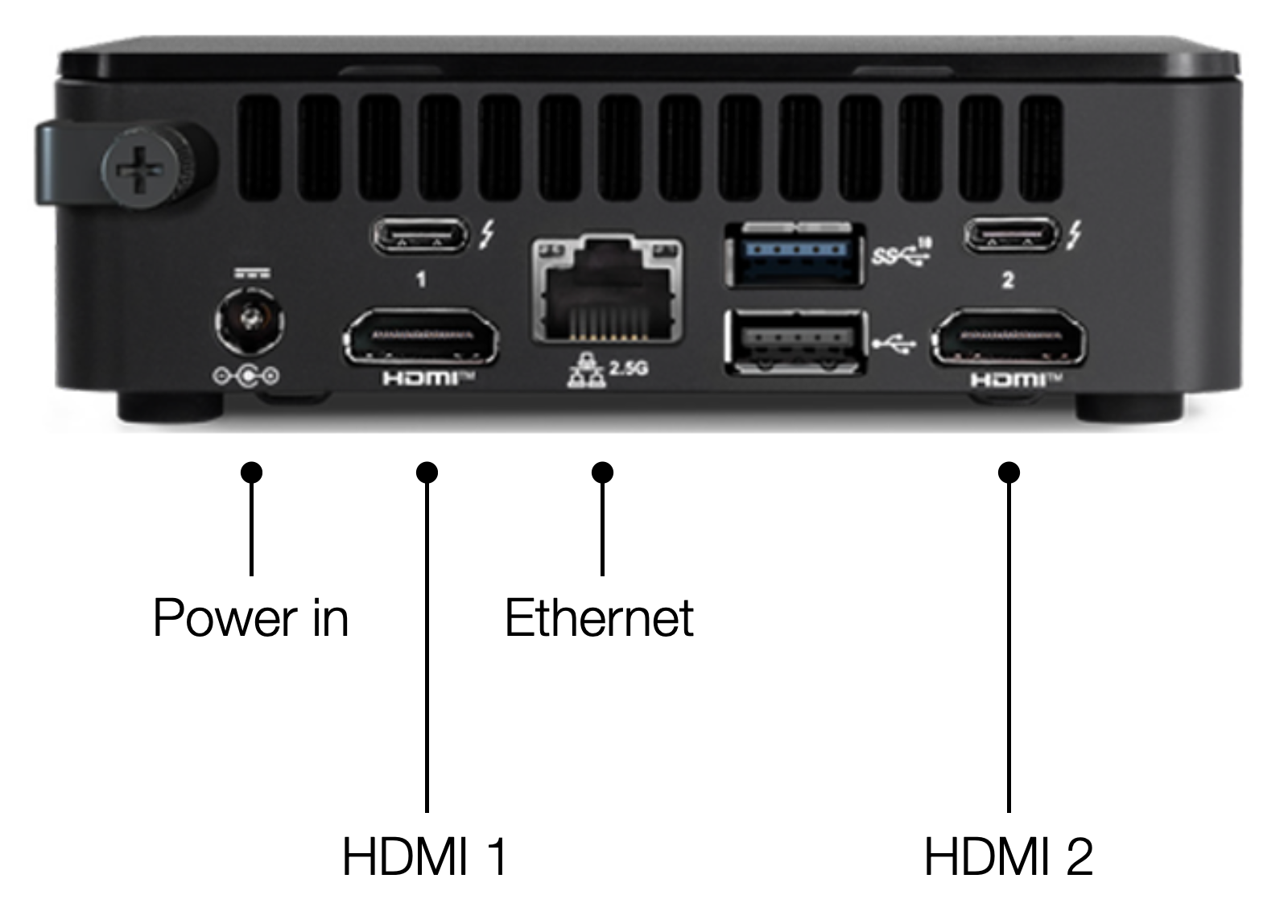

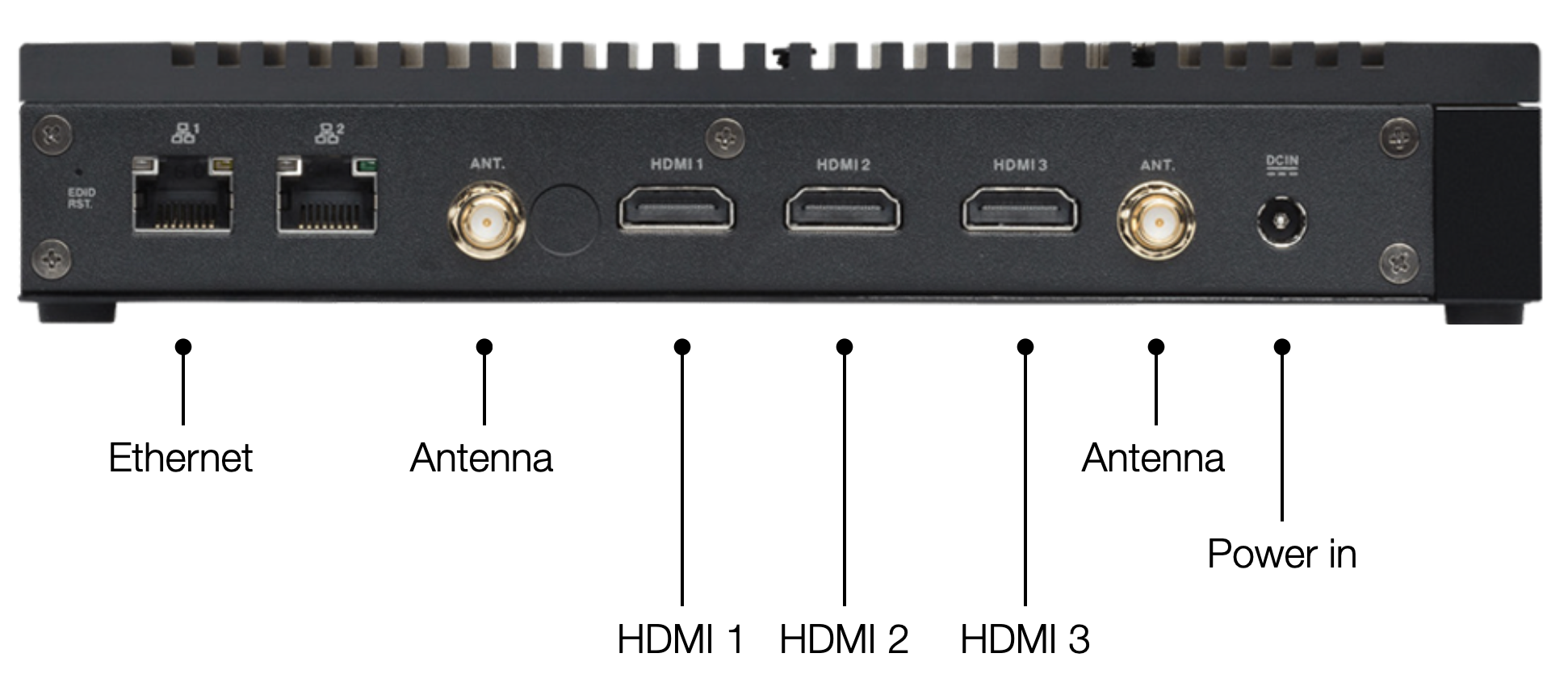

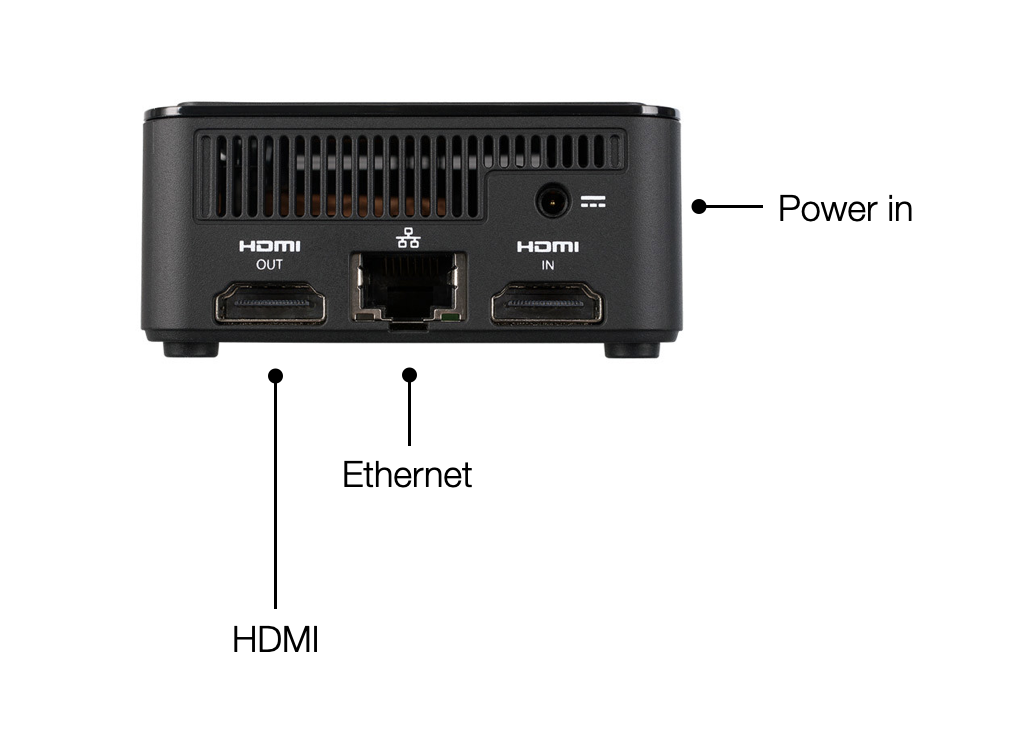

There are four models of media players, Wired slim, Wired Pro, Wireless Pro, and Triple Bank. Below are the ports for each model.

Wired slim	Wired Pro
Wireless Pro	Triple Bank

Digital Signage Installation

Let's get your equipment mounted and connected.

Mount Your Media Player

Once you have your display mounted, based on the situation, your media player can be mounted in a variety of routes. Typically the included VESA mount is used.

To review the options, please visit Mount the media player help page.

(https://support.adgators.com/support/solutions/articles/69000847658-mount-the-media-player-)

Connect to Your Display

Connect the included HDMI cable between the HDMI port on your media player and an HDMI IN port on your display.

Many displays have multiple HDMI inputs. Make note of the number you use (for example, HDMI 3).

Connect to the Internet

In order to begin playing content, the media player must be connected to the internet. By default, it is configured for DHCP. Connection options are wired and wireless, depending on the model purchased.

For directions on setting up a wireless network, static IP or other network directions, please visit the Network Connection help page.

(https://support.adgators.com/support/solutions/folders/69000639526)

Power On

Connect the included power adapter to your media player and a power outlet. The media player is configured to automatically turn on once power is supplied. The power button will illuminate.

Tip: Press and hold the power button down for 5 seconds to power off.

Media Player Setup

Configure your media player and link it to your screenseed.io account.

Desktop Screen

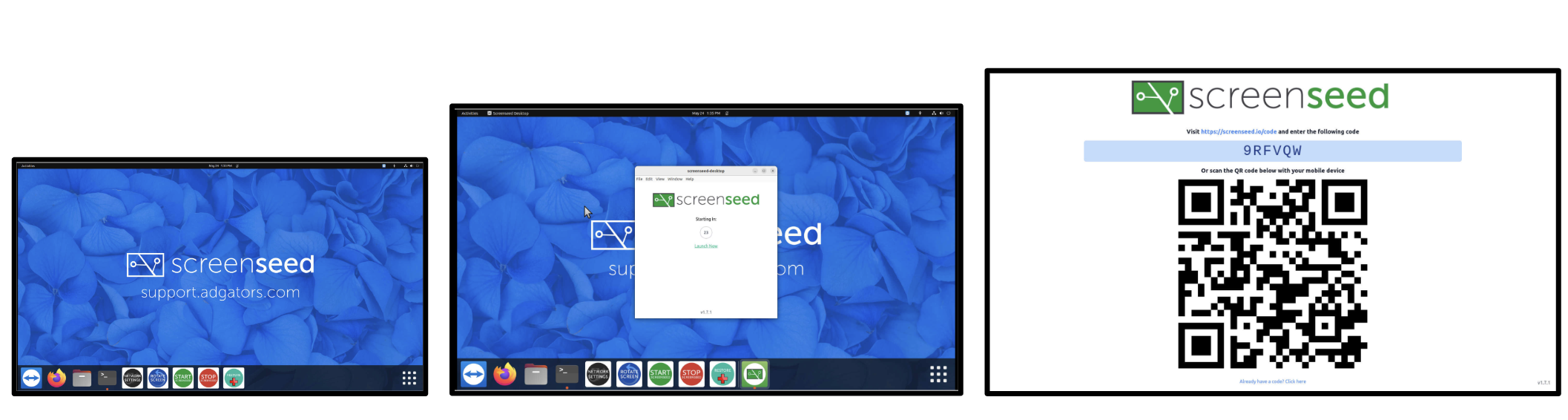

The player will boot into the Screenseed desktop screen, seen in the far left image below. The Screenseed application's splash screen will automatically launch with a countdown timer. If network connection is working, move to the 'Link the Display' section below.

If network configuration is necessary

1. To prevent the Screenseed application from launching fullscreen, use a usb mouse and press the Stop Screenseed icon on the bottom taskbar.
2. If you miss the opportunity, you can close the Screenseed application with a usb keyboard by pressing ALT+F4. The application will close and the splash screen will automatically launch again. Perform step 1.



Link the Display

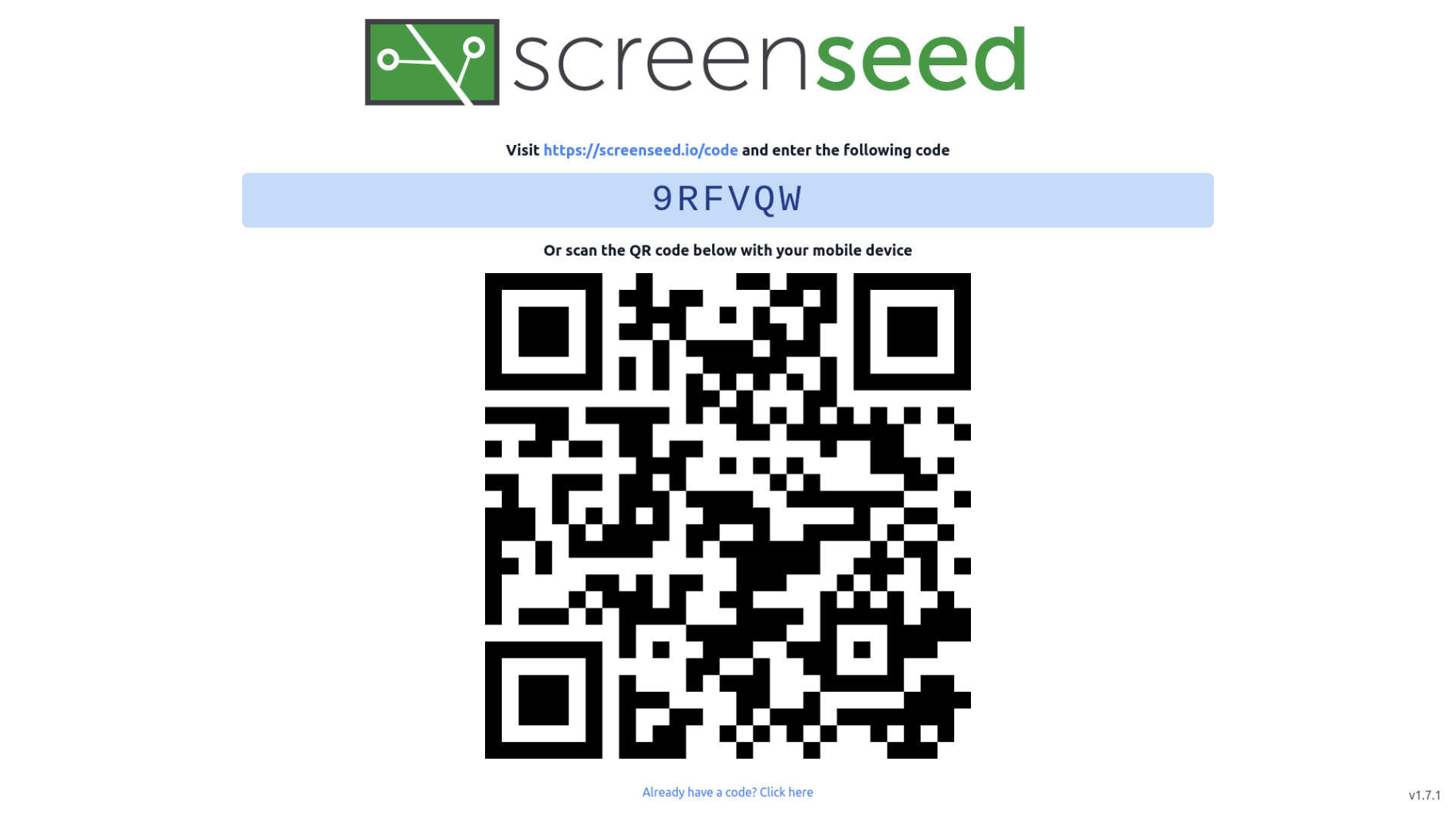

Once the player has established an internet connection and the Screenseed player has launched, you will see a Screenseed QR code on the screen. There are 2 options to link your display.

Option A - QR Code Link

First log into screenseed.io from a mobile device. Then open your mobile camera app and point it at the the QR code. Your camera app will recognize the QR code and allow you to click a link that will open your browser. The page that loads in screenseed.io will allow you to add your display and assign a channel.

Option B - Manually Link
You can manually type in the unique code written above the QR code into your screenseed.io account from any computer pc.

Visit Add a Display for directions for manually adding your display.

(https://support.adgators.com/support/solutions/articles/69000847467-add-a-display-)

Managing Your Account
screenseed.io and docketvision.com

For directions on setting up an account, please submit a ticket.
